FLUXUS F601 | |
Measurement uncertainty of the measuring system (volumetric flow rate) | ±0,3 % of reading ±0.005 m/s |
Measurement uncertainty at the measuring point (volumetric flow rate) | ±1,0 % of reading ±0.005 m/ss |
Repeatability | 0.15 % of reading ±0.005 m/s |
Flow velocity range | 0.01 ~ 25 m/s |
Ex zone transmitter | only safe area |
Power supply | Li-ION 7.2V/6.2Ah Operat. time >25h |
Available transducer | Shear wave |
for pipe sizes range | 6mm ~ 6500mm |
for temperature range | -40°C ~ +200°C / WI: -200°C ~ +630°C |
Outputs | 4-20mA active/passive |
Inputs | Pt100/Pt1000 |
Digital communication | Modbus RTU |
Additional Information | For more detailed Information please download the Technical Specifications |
어플리케이션 |
• 석유 &
가스 - 유정 모니터링 및 Onshore/Offshore 최적화
• 화학 및 기타 공정 산업 - 인프라 및 공급 원료 흐름 - 비료 식물 분야 - 염기 및 중간 화학물질
• 정수,
하수 처리 산업
- 음용수 처리 - 수도 네트워크 모니터링 및 누수 감지 - 폐수 처리
• 채광 산업
• 해양 산업
• 수력 발전 산업
|

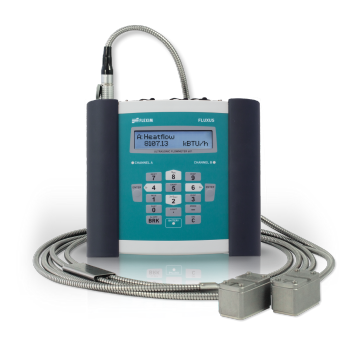

FLUXUS F601 ( Industrial Portable Flowmeter )
l 인체 공학적이고 가벼운 디자인과 간편한 인터페이스
