FLUXUS F501 | |
Measurement uncertainty of the measuring system (volumetric flow rate) | ±1.5 % v. MW ±0.01 m/s |
Repeatability | 0.25 % v. MW ±0.01 m/s |
Flow velocity range | 0.01 ~ 25 m/s |
Ex zone transmitter | only safe area |
Power supply | 230VAC, 12/24VDC |
Available transducer | Shear Wave |
for pipe sizes range | 10mm ~ 2400mm |
for temperature range | -40°C ~ 100°C |
Outputs | 1x 4-20mA active |
Digital communication | Modbus RTU |
Measurement uncertainty of the measuring system (volumetric flow rate) | ±1.5 % v. MW ±0.01 m/s |
어플리케이션 |
• 정수, 하수 처리 산업 - 음용수 처리 - 수도 네트워크 모니터링 및 누수 감지 - 폐수 처리 |

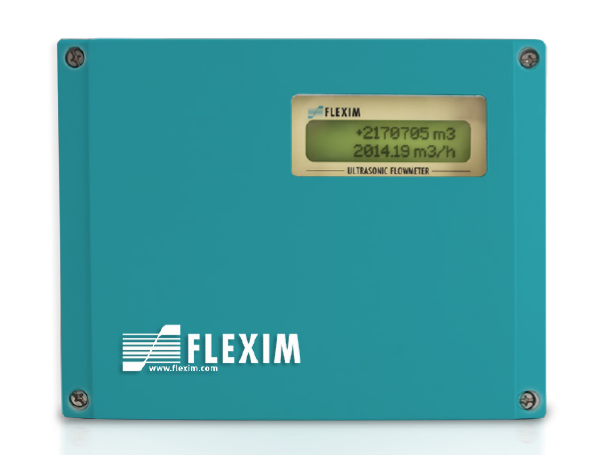

FLUXUS F501 ( Flowmeter for Water Utilities Sector )
l 양방향 유량 측정 가능
l 한 쌍의 트랜스듀서로 낮은 유속에서도 높은 측정 정확도
