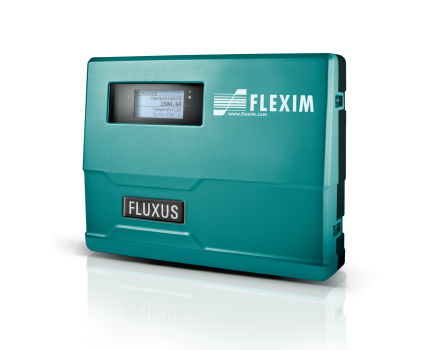

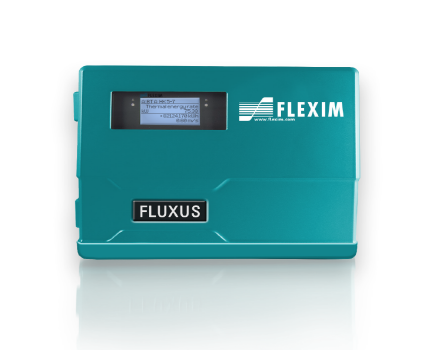

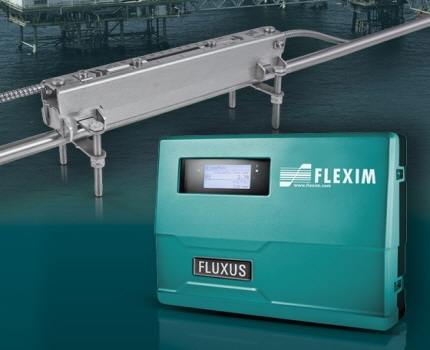

FLUXUS F721

Measurement uncertainty of the measuring system (volumetric flow rate)

±0,3 % of reading ±0.005 m/s

Measurement uncertainty at the measuring point (volumetric flow rate)

±1,0 % of reading ±0.005 m/s

Repeatability

0.15 % of reading ±0.005 m/s

Flow velocity range

0.01 ~ 25 m/s

Ex zone transmitter

ATEX/IECEx/KCs Zone 2, FM Class I /Div 2

Power supply

100-230VAC, 24DC, 12DC

Available transducer

Shear Wave

for Ex zones

ATEX/IECEx/KCs Zone 1/Zone 2
FM Class I - Div2

for pipe sizes range

6mm ~ 6500mm

for temperature range

-40°C ~ +240°C / WI: -200°C ~ +630°C

Outputs

4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary

Inputs

Pt100/Pt1000
4-20mA active/passive
Binary input

Digital communication

Modbus RTU/TCP
BACnet MSTP/IP
M-Bus
Profibus PA
Foundation Fieldbus

Advanced Meter Verification

Available

Additional Information

For more detailed Information please download the Technical Specifications
