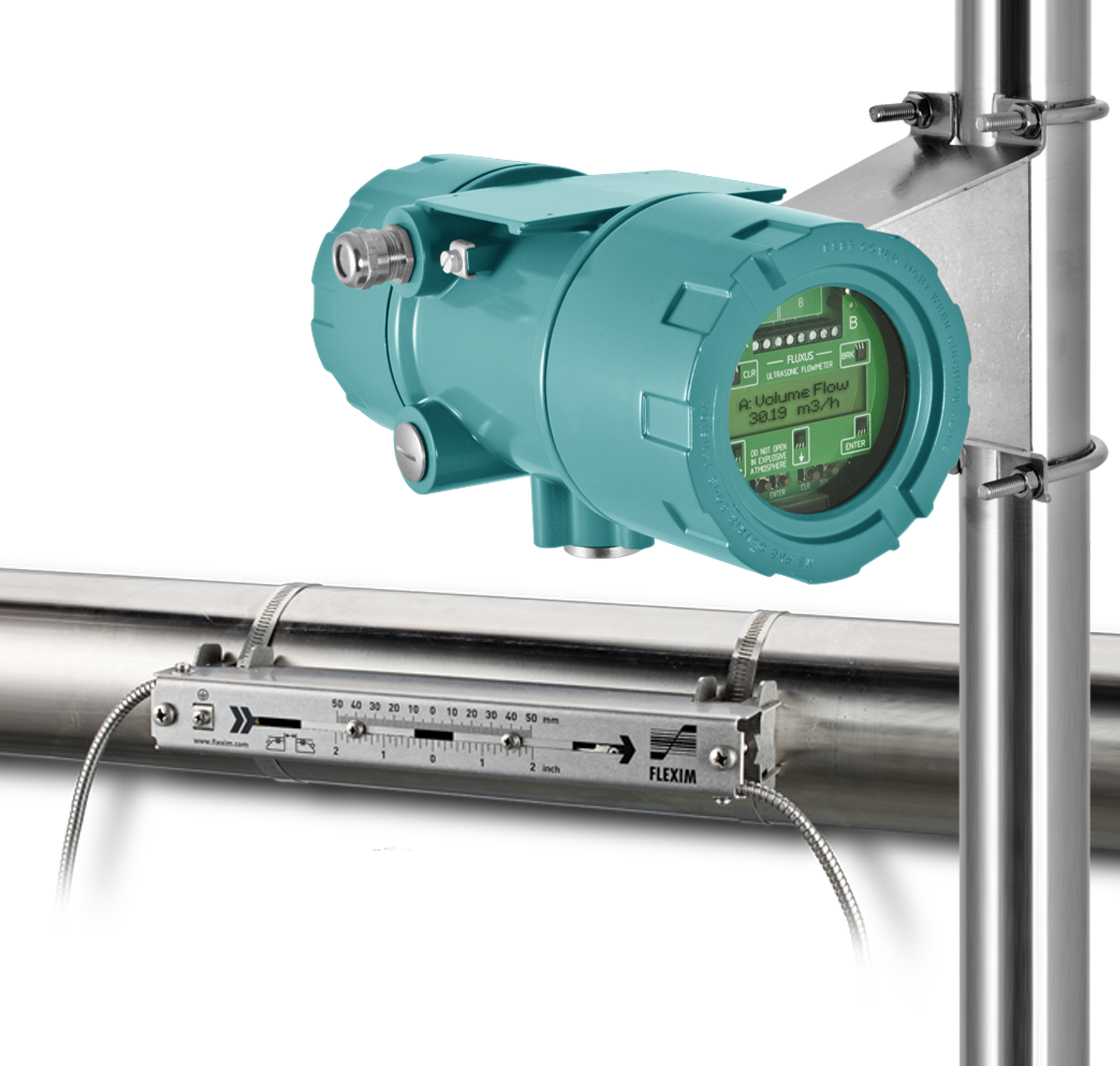

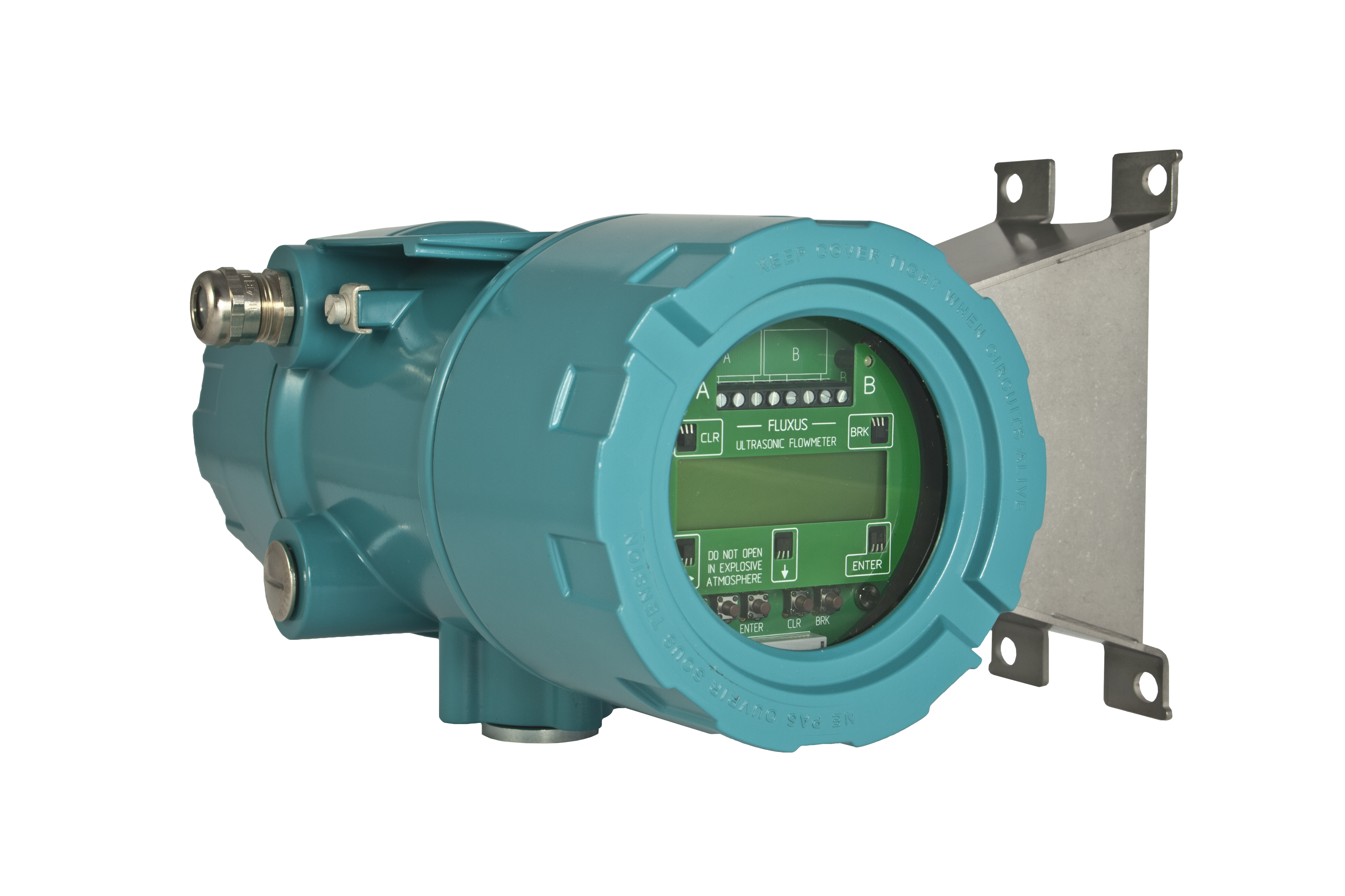

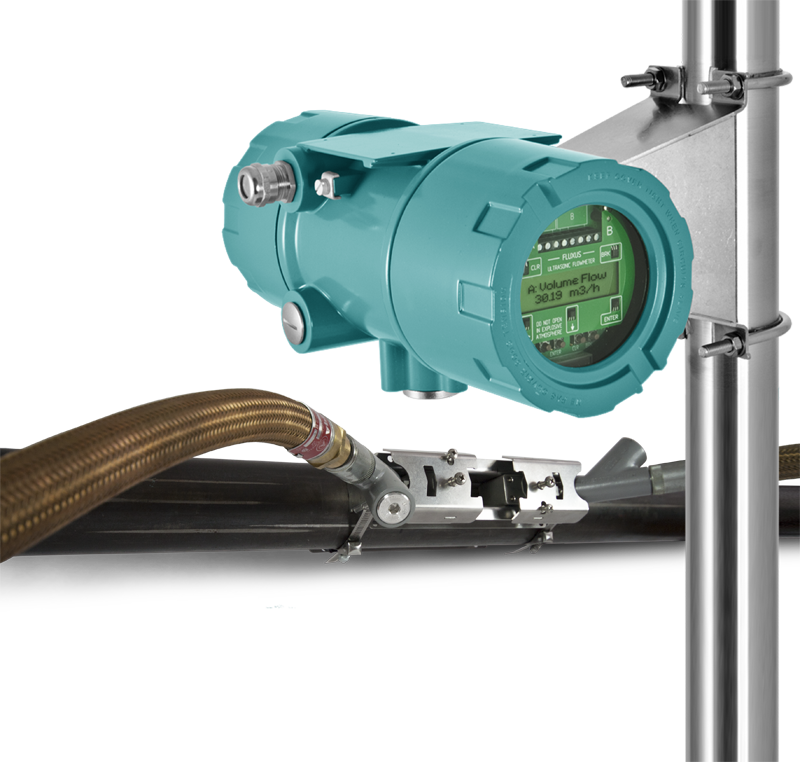

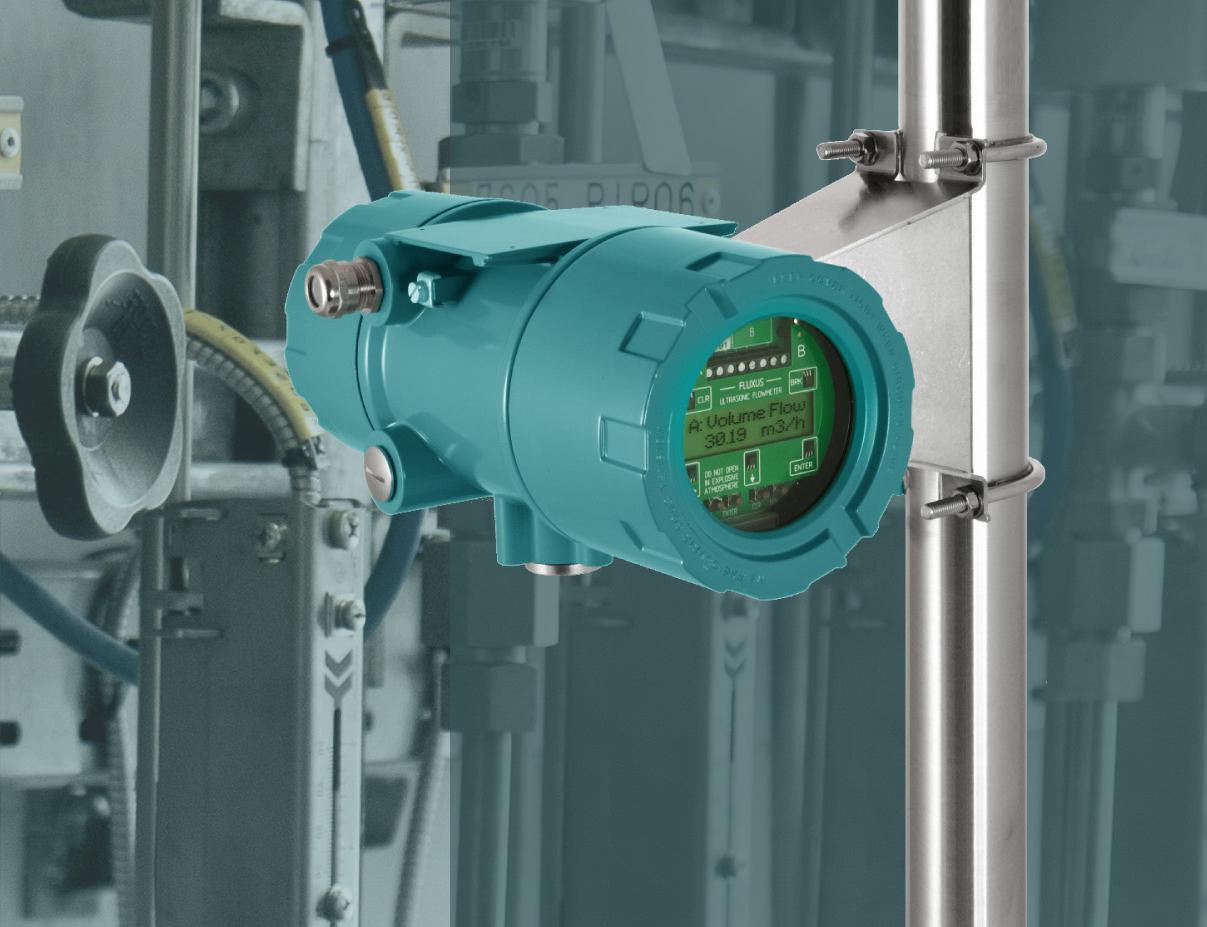

FLUXUS F808 |
|
Measurement uncertainty of the measuring system (volumetric flow rate) |
±1,0 % of reading ±0.005 m/s |
Measurement uncertainty of the measuring system (volumetric flow rate) |
±0,3 % of reading ±0.005 m/s |
Repeatability |
0.15 % of reading ±0.005 m/s |
Flow velocity range |
0.01 ~ 25 m/s |
Ex zone transmitter |
ATEX/IECEx/KCs Zone 1, FM Class I - Div1/Div2 |
Power supply |
230VAC, 12/24VDC |
Available transducer |
Shear Wave |
for Ex zones |
ATEX/IECEx/KCs Zone 1 FM Class I - Div1/Div2 |
for pipe sizes range |
6mm ~ 6500mm |
for temperature range |
-40°C ~ +240°C |
Outputs |
4-20mA active/passive, 4-20mA HART active/passive, pulse/frequency/binary |
Digital communication |
Modbus RTU |
Additional Information |
For more detailed Information please download the Technical Specifications |
어플리케이션 |
• 석유 &
가스
- 고온 정제 관련 분야 - 공정 제어, 계량
및 검증 확인 - 유정 모니터링 및 Onshore/Offshore 최적화 - 기존 레거시 계측 및 교체의 프로세스 제어 및 검증 측정
|
