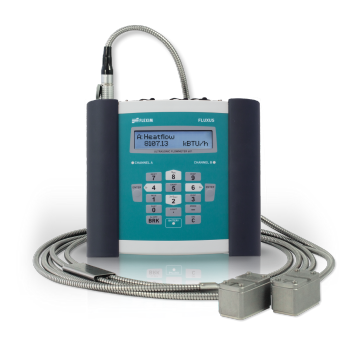

FLUXUS G601ST

Measurement uncertainty of the measuring system (volumetric flow rate)

±0,3 % of reading ±0.005 m/s

Measurement uncertainty at the measuring point (volumetric flow rate)

±1% ~ 3% of reading, ±0,01 m/s, depending on application

Repeatability

±0,15% of reading, ±0,01 m/s

Flow channels

2

Medium

saturated steam, superheated steam, liquids and gases, see technical specification for details

Process temperature

max. 180°C non-Ex
max. 165°C ATEX Zone 2
max. 155°C ATEX Zone 1

Process pressure

min. 3 bar abs.

Pipe diameter range

45 mm ~ 1000 mm

Flow velocity range

0,01m/s ~ 60m/s (depending an pipe size and transducer)

Explosion protection

FLUXUS G608 ST Transmitter:
ATEX / IECEx Zone 2
Transducers:
ATEX / IECEx Zone 1 or Zone 2

Communication Protocol

Modbus RTU optional

Additional Information

please have your specific application tested for feasibility
