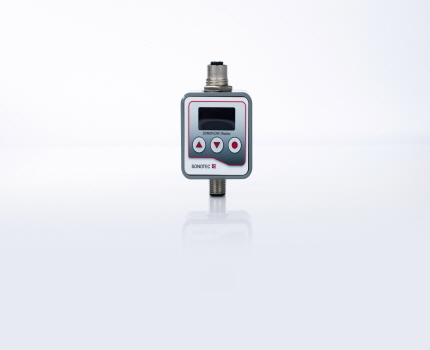

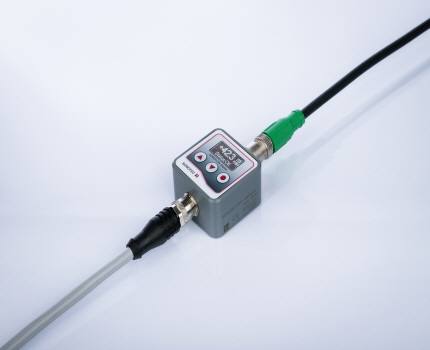

SONOFLOW RD.10 Remote Display – Smart Sensor Accessory

Dimensions (L x W x H)

68 x 44 x 27 mm

Materials

PVC-C housing

Measuring Screen

Flow, volume, temperature, min. flow, max. flow

Settings

Measurement units, sleep mode, display contrast, zero reset of sensor

Electrical Connection

8-pin M12 connector, DIN EN 61076-2-101:2012

Interfaces

0/4-20 mA, 0-20 kHz, PNP / NPN / Push-Pull, RS-485 (bus capable), digital input

Ambient / Media Temperature

0 to 50 °C, other temperatures available on request
