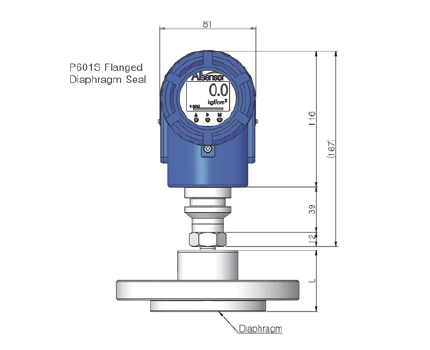

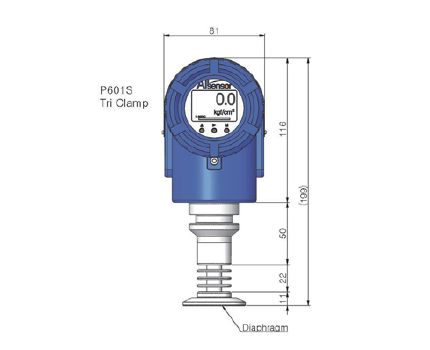

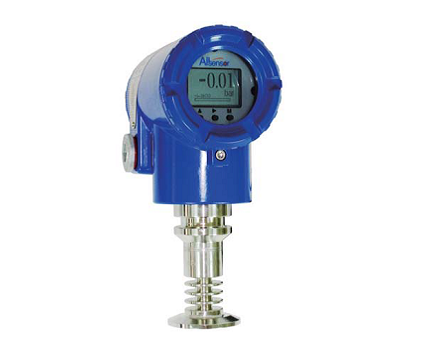

P601S Series

Pressure range

0 ~ 0.01 to 50 MPa Gauge,Vacuum or Compound pressure

0 ~ 0.1 to 3.5 MPa Absolute pressure

Accuracy

≤ ± 0.25% F.S.

Power supply

24V DC

Operating Temperature Range

-40 ~ 120 ℃

Materials

Wetted parts : STS 316L, Hastelloy C,Nickel, Tantalum or Teflon Coating

Housing & front,rear cover : Aluminum Die-casting

Enclosure rating

IP67

Explosion protection

Exd Ⅱ C T6 (방호장치 의무안전인증/고용노동부고시 제 2013-54호)

 어플리케이션
