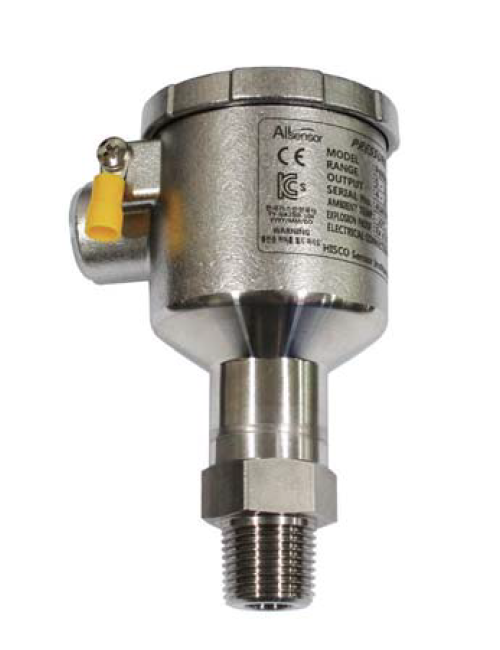

P400S Series

Pressure range

0 ~ 0.01 to 50 MPa Relative pressure

Accuracy

≤ ± 0.5% F.S.

Power supply

12 ~ 36V DC (It is not free voltage)

Operating Temperature Range

-40 ~ 200 ℃

Materials

Wetted parts : STS 316L (standard) or Nickel, Hastelloy C276,

                   Tantalum & Teflon Coating

Non Wetted Parts : STS 304 (housing)

Enclosure rating

IP67

Explosion protection

Exd Ⅱ C T6 (방호장치 의무안정인증 / 고용노동부고시 제 2013-54호)

어플리케이션
