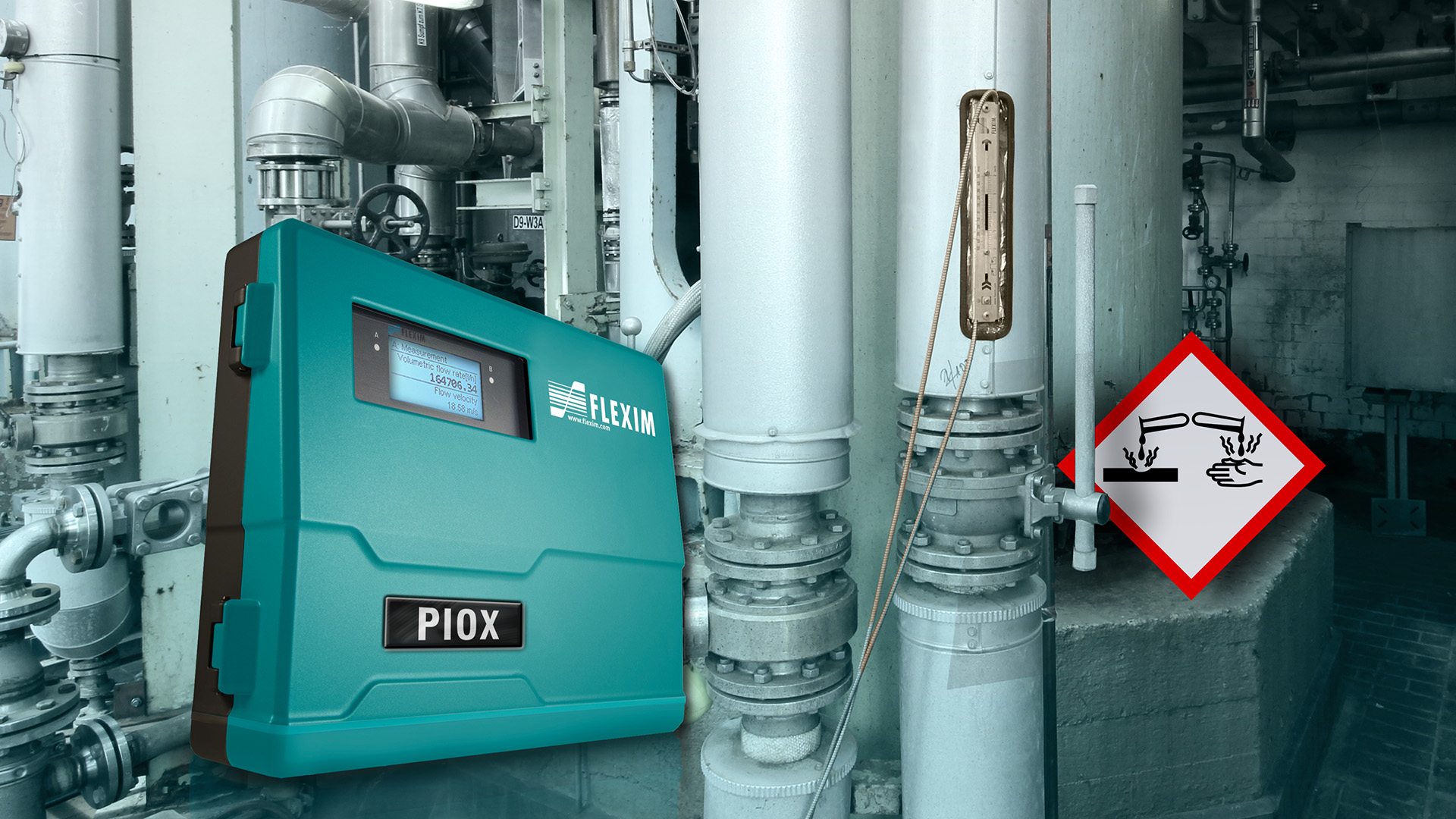

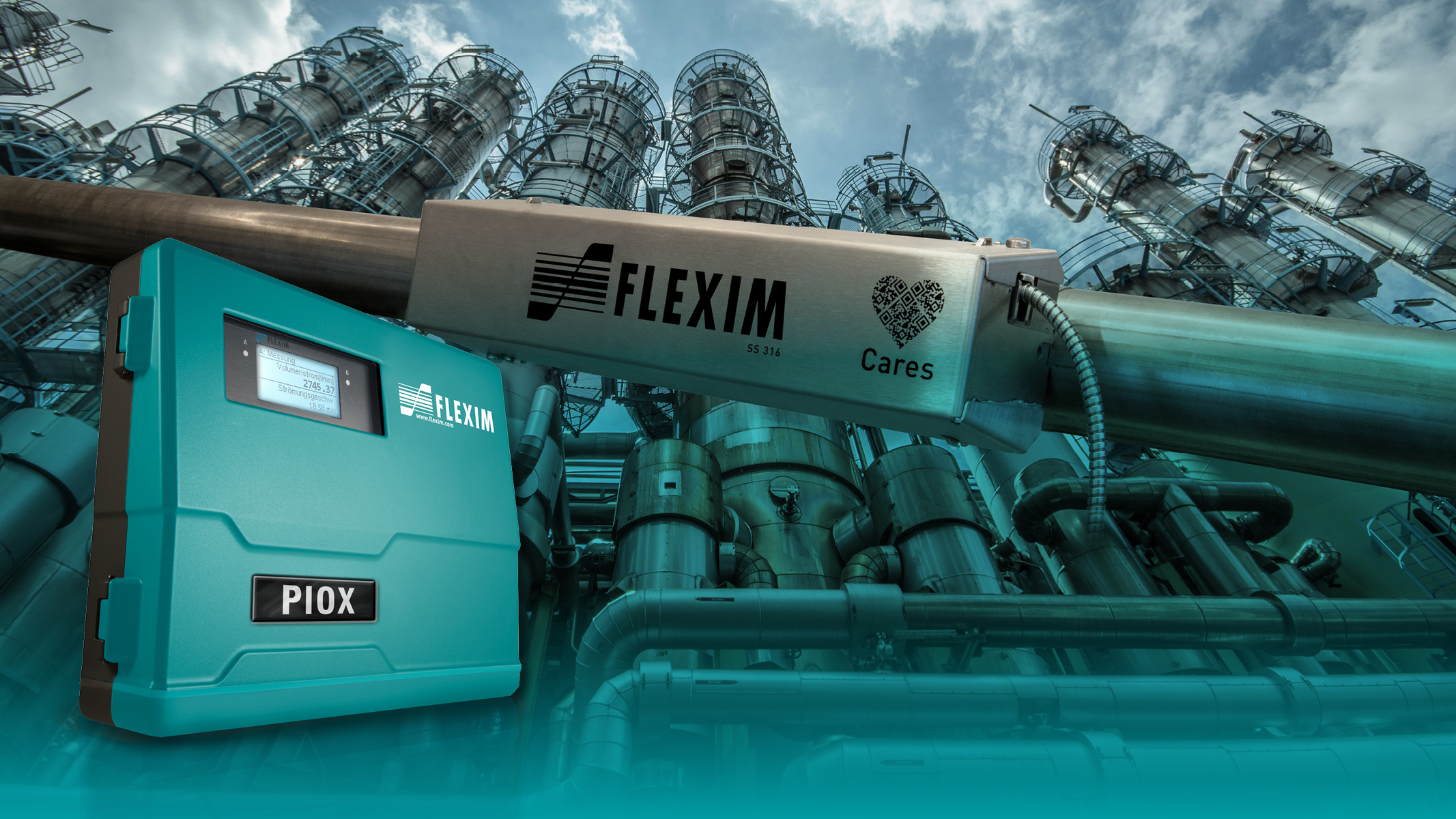

PIOX S – Density Meter

PIOX S는 PIOX R 타입과 다르게 파이프 외부에 장착된 Clamp-on 초음파 트랜스듀서를 통해 농도와 밀도를 측정합니다. 비접촉식 기술은 유체와 공정의 안전과 신뢰성을 가장 많이 요구할 때 선택하는 시스템입니다.



PIOX S – Density Meter

Measuring quantities

Sound velocity
concentration g/l, mass and vol.%,
density
additional quantities programmable

Measurement range

1000 ~ 2500 m/s (0 ~ 100 w%)*

Measurement accuracy

Instrument is field calibrated

Repeatability

0.1 w%* (0.5m/s)

Diagnostic values

Signal quality

Media temperature

-60 °C ~ +400 °C**

Fluid pressure

3000 bar

Degree of protection

Ultrasonic Transducers: IP67, ATEX (IECEx) zone 0,/1
Transmitter S721: aluminum or stainless-steel enclosure, IP66, ATEX (IECEx) zone 2

Wetted parts, materials

None

Housing Material

Stainless Steel 304 (1.4301)

Process connection

Clamped onto the pipe with Variofix system

Cleaning systems

Not required

Additional Information

* For most waterbased solutions and common working point
** additional wave injector required



PIOX S – Density Meter

l 1/2” ~ 8”의 모든 파이프 크기에 적합
l 파이프 재질과 무관 - 유리, 강철, 플라스틱 등
l 최대 400 °C의 온도에서도 측정 가능
l 거의 모든 산, 부식제 및 다양한 기타 독성 액체에서도 측정 가능
l ATEX, IECEX FM Area 방폭 등급
l 설치를 위하여 공정 중단 필요 없음

l 유지 보수가 필요 없음
